DR800
Machine Description
The DR800 water removal unit by Saccardo, positioned after the shrink tunnel, removes residual water and ensures a drier product.
The DR800 completes the standard packaging line and proves highly functional in processes that continue with inspection, labeling, and subsequent boxing. This reliable system helps save time and reduce production costs.
Caratteristiche principali
Main Features
- Entirely stainless-steel structure;
- Wide-mesh stainless-steel conveyor belt, allowing better airflow and effective product drainage;
- Single blower motor powering three air knives — one lower and two upper;
- Option to disable the air flow and use the unit as a simple conveyor;
- Adjustable belt speed up to 28 m/min;
- Full function control via PLC integrated in the touchscreen operator panel.
Installed in a processing area, the DR800 Saccardo is a crucial component to ensure hygiene, safety, product quality, and production efficiency, as it:
- Improves hygiene of both the product and the environment: removing residual water reduces contamination risks and keeps the production line drier and cleaner;
- Enhances cold storage preservation, preventing condensation buildup;
- Facilitates automatic labeling: dry and smooth product surfaces allow more precise and reliable label application;
- Improves secondary packaging: dry packages are easier to insert into boxes, cartons, or stretch films, preventing secondary packaging materials from getting wet, damaged, or deformed.
Technical Specifications
Additional information
| Conveyor belt speed | Adjustable from 0 to 28 m/min |
|---|---|
| Installed Electrical Power | 8Kw |
| Machine operation and control | Via PLC integrated in the touchscreen operator panel |

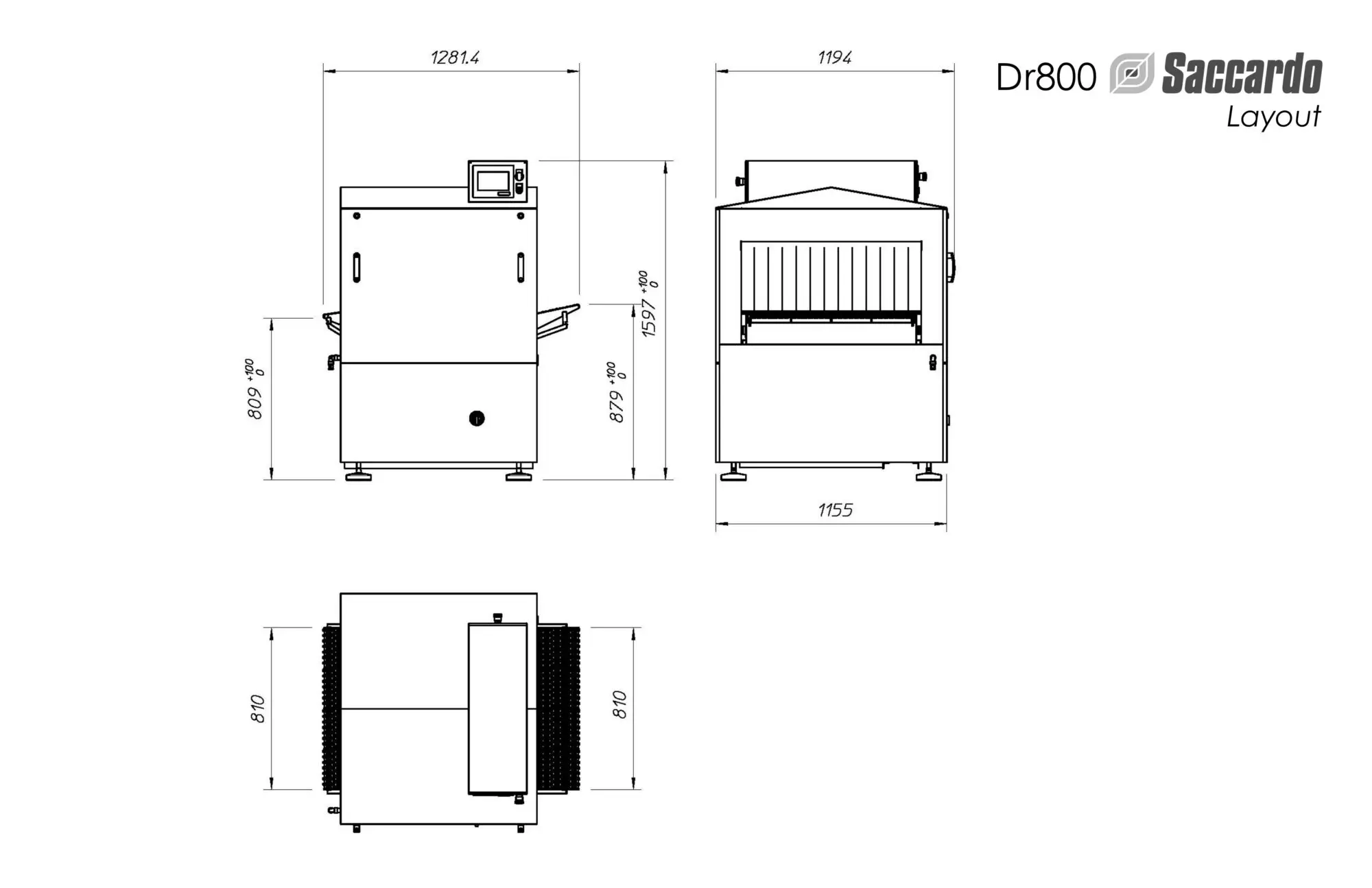

| Overall Dimensions (L x W x H) |
